DEC2770 – OPNsense® Rack Security Appliance
search
  • DEC2770 – OPNsense® Rack Security Appliance
  • DEC2770 – OPNsense® Rack Security Appliance
  • DEC2770 – OPNsense® Rack Security Appliance
  • DEC2770 – OPNsense® Rack Security Appliance
  • DEC2770 – OPNsense® Rack Security Appliance

DEC2770 – OPNsense® Rack Security Appliance

1.399,00 €
Tasse escluse

OPNsense® DEC2770 con SSD da 256 GB

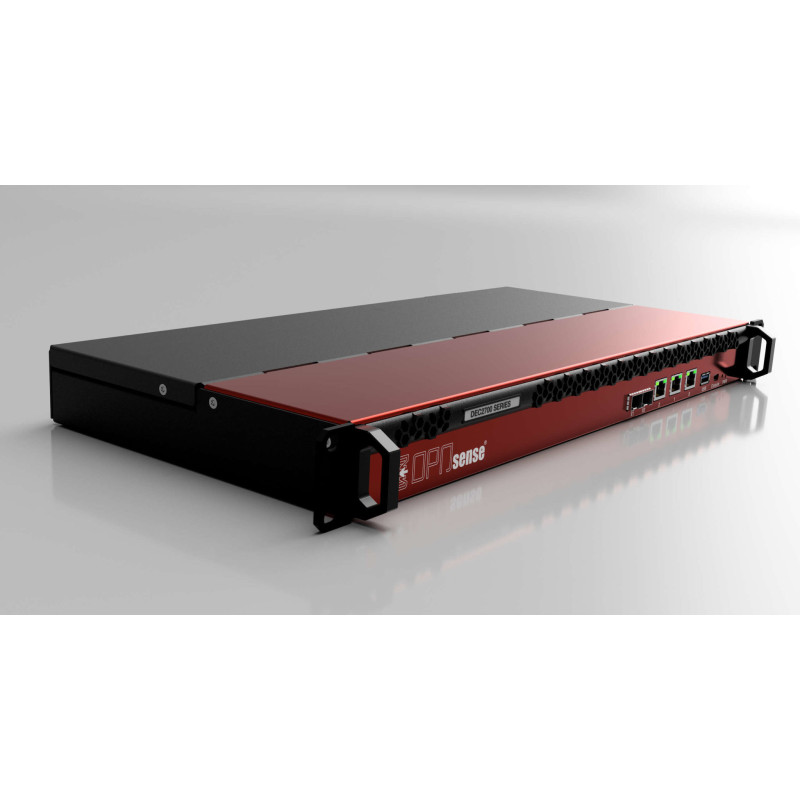

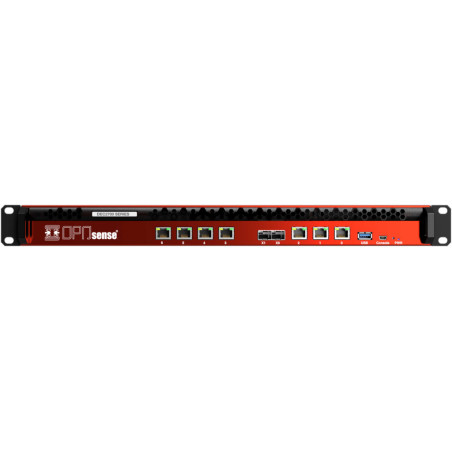

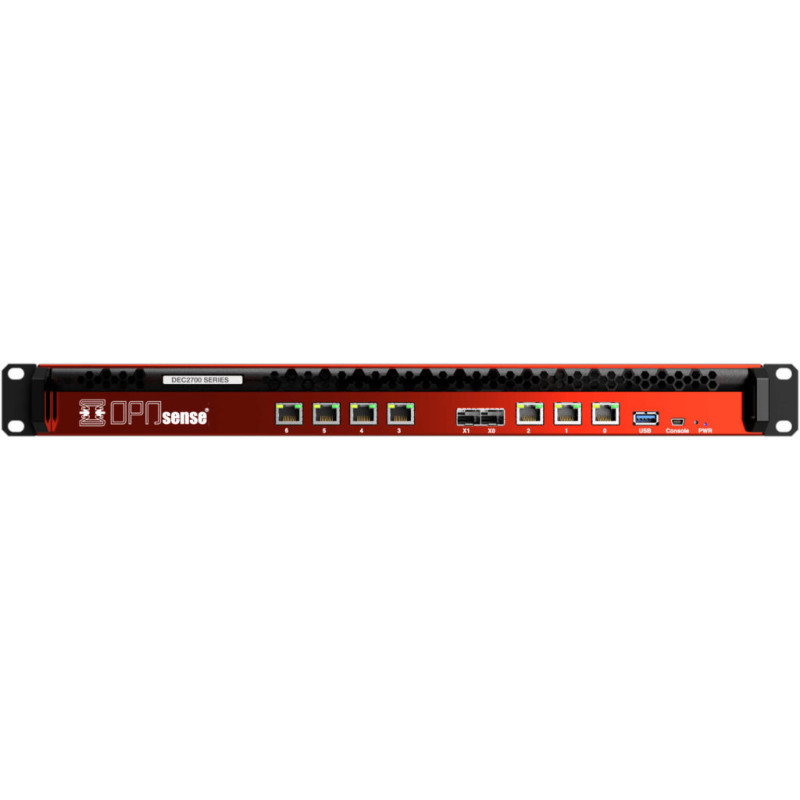

Appliance di sicurezza rack 1U con 7 porte 2.5 GbE, 2 porte SFP+ da 10 Gbps, 8 GB di RAM DDR4, SSD da 256 GB e OPNsense® preinstallato (inclusa Business Edition di 1 anno).

Ideale per aziende di medie dimensioni e uffici remoti che richiedono elevate prestazioni in firewall, VPN, IDS/IPS e filtraggio web. Supporta fino a 10 Gbps di traffico firewall e 1.2 Gbps su VPN IPsec.

Tempi di consegna stimati: 3–5 giorni

Power Cord: EU Plug
Quantità

THE NEW DEC2700 SERIES

DEC2752

DEC2770

Unrivalled In Its Class
Up to 10 Gigabit performance in a 1U rack.
Fully featured, great for SME’s and branch offices.

Comes with up to 7x 2.5GbE! (DEC2770)

FULL MODEL SPECIFICATIONS

MORE DETAILS & PICTURES ON THE SERIES LANDING PAGE

Models DEC2752 DEC2770

Software
Preinstalled software OPNsense®  OPNsense®
License Open Source + 1 year free Business
Edition		 Open Source + 1 year free Business
Edition
Hardware Specifications
Typical Applications Firewall / Routing, VPN, IDPS Firewall / Routing, VPN, IDPS
SFP+ Ports [10Gbps] 2 2
2.5GbE RJ45 Ports [ 100/1000/2500Mbps ] 3 7
USB 3.0 Ports 1 1
Console Port 1 1
Internal Storage 256GB Solid State Flash 256GB Solid State Flash
Memory 8GB DDR4 8GB DDR4
CPU Cores 4 / 8 Threads (max frequency 2.2Ghz) 4 / 8 Threads (max frequency 2.2Ghz)
Virtual Interfaces (802.1q VLANS)1 4093 4093
System Performance
Firewall Throughput 10Gbps 10Gbps
Firewall Packets Per Second 830Kpps 830Kpps
Maximum Firewall Port to Port Throughput 8.5Gbps 8.5Gbps
Firewall Port to Port Packets Per Second 719Kpps 719Kpps
Concurrent Sessions 7000000 7000000
New Connections Per Second 50000 50000
Firewall Latency (average) 150us 150us
Firewall Policies (Recommended Maximum)1 10000 10000
IPsec VPN Throughput (AES256GCM16) 1.2Gbps 1.2Gbps
IPsec VPN Packet Per Second (AES256GCM16) 178Kpps 178Kpps
Threat Protection Throughput Packet Per Second ~85Kpps ~85Kpps
Threat Protection Throughput ~1Gbps ~1Gbps
High Availability with State Synchronisation Requires Two Requires Two
Dimensions
Height x Width x Depth (mm) 43.8 (1U) x 482.6 (19″) x 242 (214 excl. mount/handle) 43.8 (1U) x 482.6 (19″) x 242 (214 excl. mount/handle)
Height x Width x Length (inches) 1.73 x 19 x 9.53 (8.43 excl. mount/handle) 1.73 x 19 x 9.53 (8.43 excl. mount/handle)
Form Factor 19″ Rackmountable 19″ Rackmountable
Weight (appliance only) 2.65Kg  2.75 Kg
Environment
Power Requirements 100-240VAC, 50-60Hz 100-240VAC, 50-60Hz
Maximum Current 0.8A 0.8A
Power Consumption (Typical) 15W  20W
Heat Dissipation 51.2 BTU/hr 68.3 BTU/hr
Operating Temperature 0 to +45°C 0 to +45°C
Storage Temperature -20 to +70°C -20 to +70°C
Humidity 10-90% non-condensing 10-90% non-condensing
Regulatory Compliance
FCC part 15 Class A, CE, Rohs FCC part 15 Class A, CE, Rohs

1 The user interface is designed for normal business usage, large rulesets, high number of users or interface assignments may be less practical.

All measurements are based upon TCP traffic unless stated otherwise. Total Firewall Throughput is calculated based on system utilisation and port-to-port performance test in full duplex. Maximum PPS is measured using 100 byte packets. IPS performance is measured using ET Open and standard 1500 byte package size. SSL VPN is measured using AES256GCM16+SHA512. Concurrent sessions are based upon memory available, where one state consumes 1KB of memory and 1GB of memory is reserved for system tasks. Latency is measured as an average over 60 seconds.

DEC2770

Riferimenti Specifici

ean13
4251877349969
MPN
DEC2752
