- Nuovo

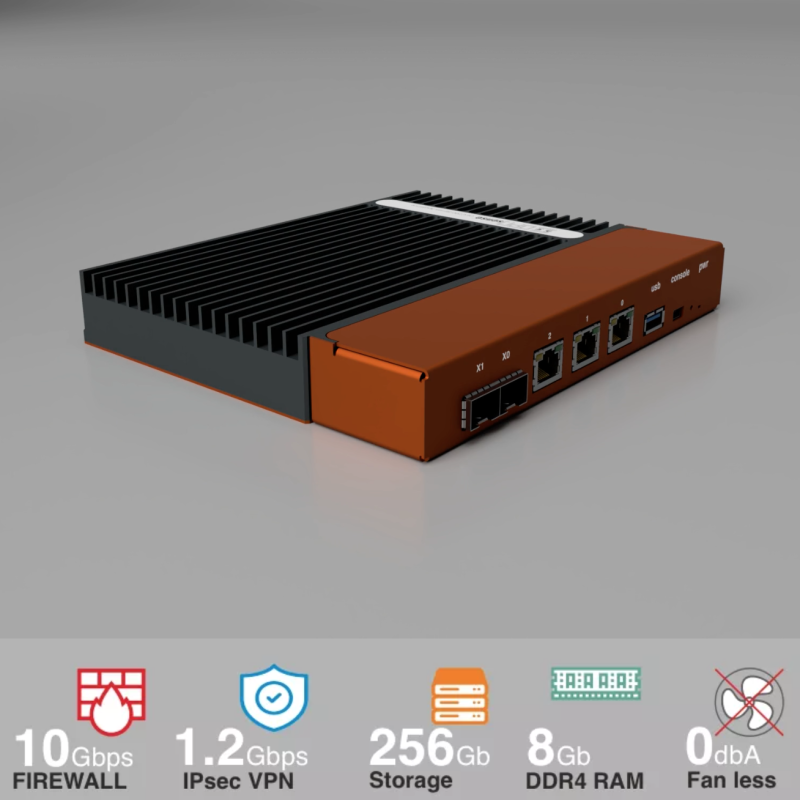

Appliance di sicurezza desktop senza ventola con 3 porte 2.5 GbE, 2 porte SFP+ da 10 Gbps, 8 GB di RAM DDR4, SSD da 256 GB e OPNsense® preinstallato (Business Edition di 1 anno inclusa).
Prestazioni professionali per reti sicure in uffici di medie dimensioni e ambienti edge. Supporta firewall, VPN, IDS/IPS e filtraggio web con elevata capacità di elaborazione.
Tempi di consegna stimati: 3–5 giorni
A fan less desktop appliance, the full package in a compact housing at an affordable price.
Exceptional performance for businesses & enterprise in a 1U rack enclosure.
This model includes 8GB DDR4 RAM, 256GBSolid State Flash and can handle upto 8.5Gbps Firewall & 1.2Gbps IPsec throughput (AES256GCM16).
All OPNsense® Security Appliances come with 2 Year Carry-in & Return Warranty.
Models | DEC750 |
![]() |
|
Software | |
Preinstalled software | OPNsense® |
License | Open Source + 1 year free Business Edition |
Hardware Specifications | |
Typical Applications | Firewall / Routing, VPN, IDPS & Webproxy |
2.5GbE RJ45 Ports [ 100/1000/2500Mbps ] / 10Gbps SFP+ Ports | 3 / 2 [5 Ports Total] |
USB Ports | 1 |
Console Port | 1 |
Internal Storage | 256GB Solid State Flash |
Memory | 8GB DDR4 |
CPU Cores | 4 / 8 Threads (max frequency 2.2Ghz) |
Virtual Interfaces (802.1q VLANS)1 | 4093 |
System Performance | |
Firewall Throughput | 10Gbps |
Firewall Packets Per Second | 830Kpps |
Firewall Port to Port Throughput | 8.5Gbps |
Firewall Port to Port Packets Per Second | 719Kpps |
Concurrent Sessions | 7000000 |
Firewall Latency (average) | 150us |
Firewall Policies (Recommended Maximum)1 | 10000 |
IPsec VPN Throughput (AES256GCM16) | 1.2Gbps |
IPsec VPN Packet Per Second (AES256GCM16) | 107Kpps |
Threat Protection Throughput Packet Per Second | ~85Kpps |
Threat Protection Throughput | ~1Gbps |
High Availability with State Synchronisation | Requires Two |
Dimensions | |
Height x Width x Length (mm) | 28 x 190 x 160 |
Height x Width x Length (inches) | 1.1 x 7.5 x 6.3 |
Form Factor | Desktop |
Weight (appliance only) | 842g |
Environment | |
Power Requirements | 100-240VAC, 50-60Hz |
Maximum Current (AC) | 0.8A |
Power Consumption (Typical) | 15W |
Heat Dissipation (Typical) | 51.2 BTU/hr |
Operating Temperature | 0 to +45°C |
Storage Temperature | -20 to +70°C |
Humidity | 10-90% non-condensing |
Regulatory Compliance | |
FCC part 15 Class A, CE, Rohs | |
When using SFP+Modules, do not mix 2.5/5Gbps and 10Gbps link-speed as the hardware does not support mixing these due to different frequencies.
While most standard LC-LC OM3 SFP+ modules and SFP+ Direct Attached Cables are likely to function we advise to select one of of the known compliant modules from the following list:
SFP+ (Up to 10G)
————————————————————————————–
TESTED & WORKING:
SFP (Up to 1G)
————————————————————————————–
TESTED & WORKING:
